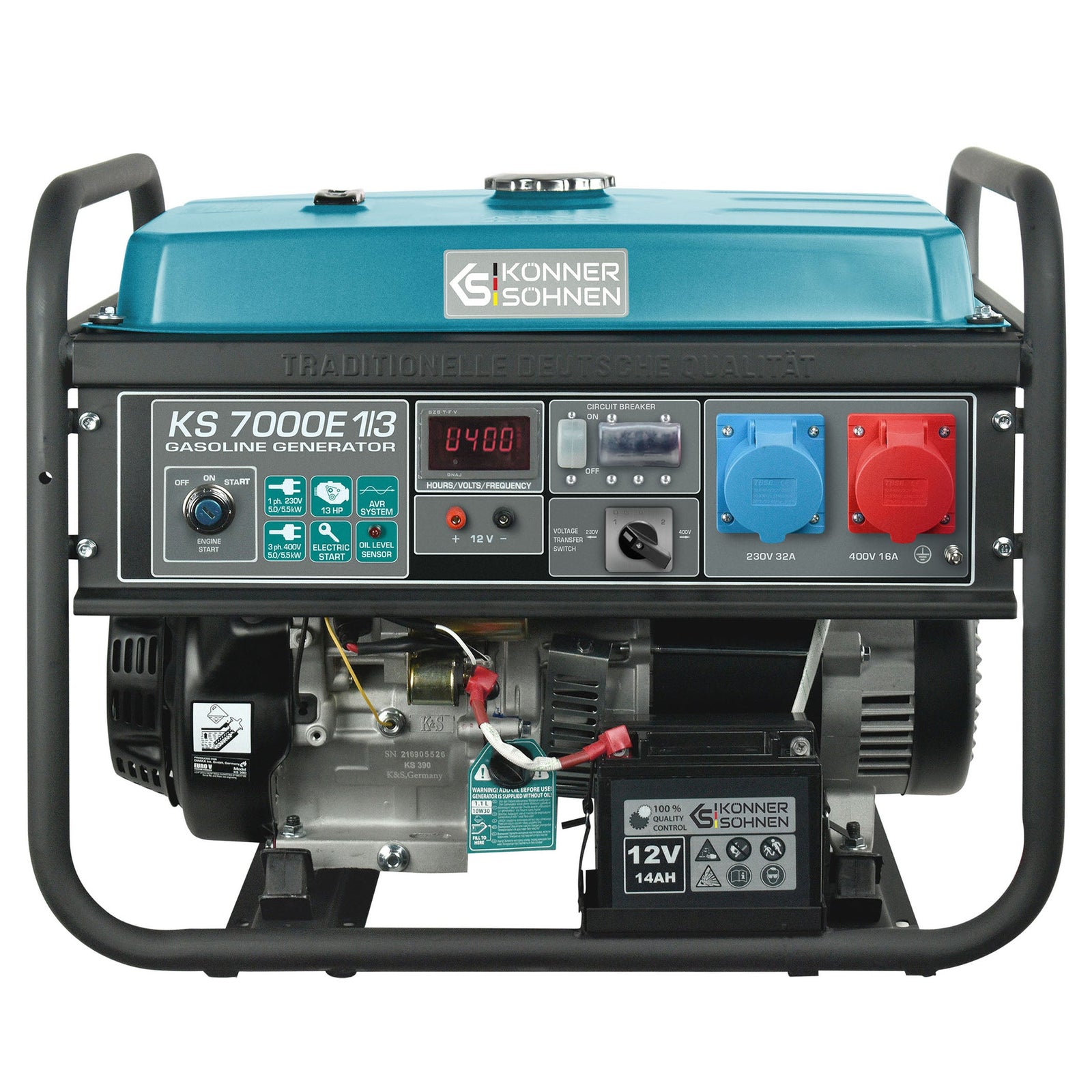

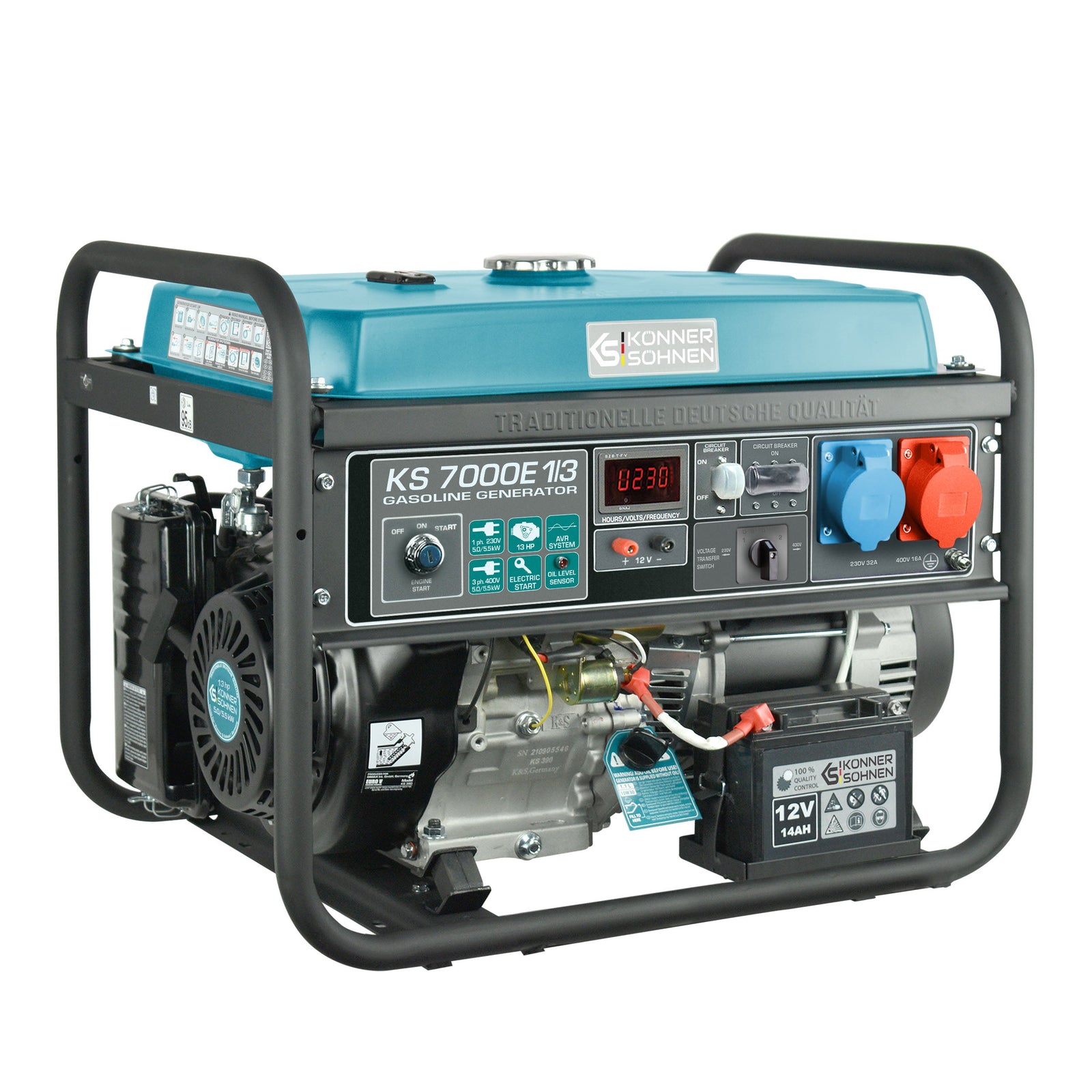

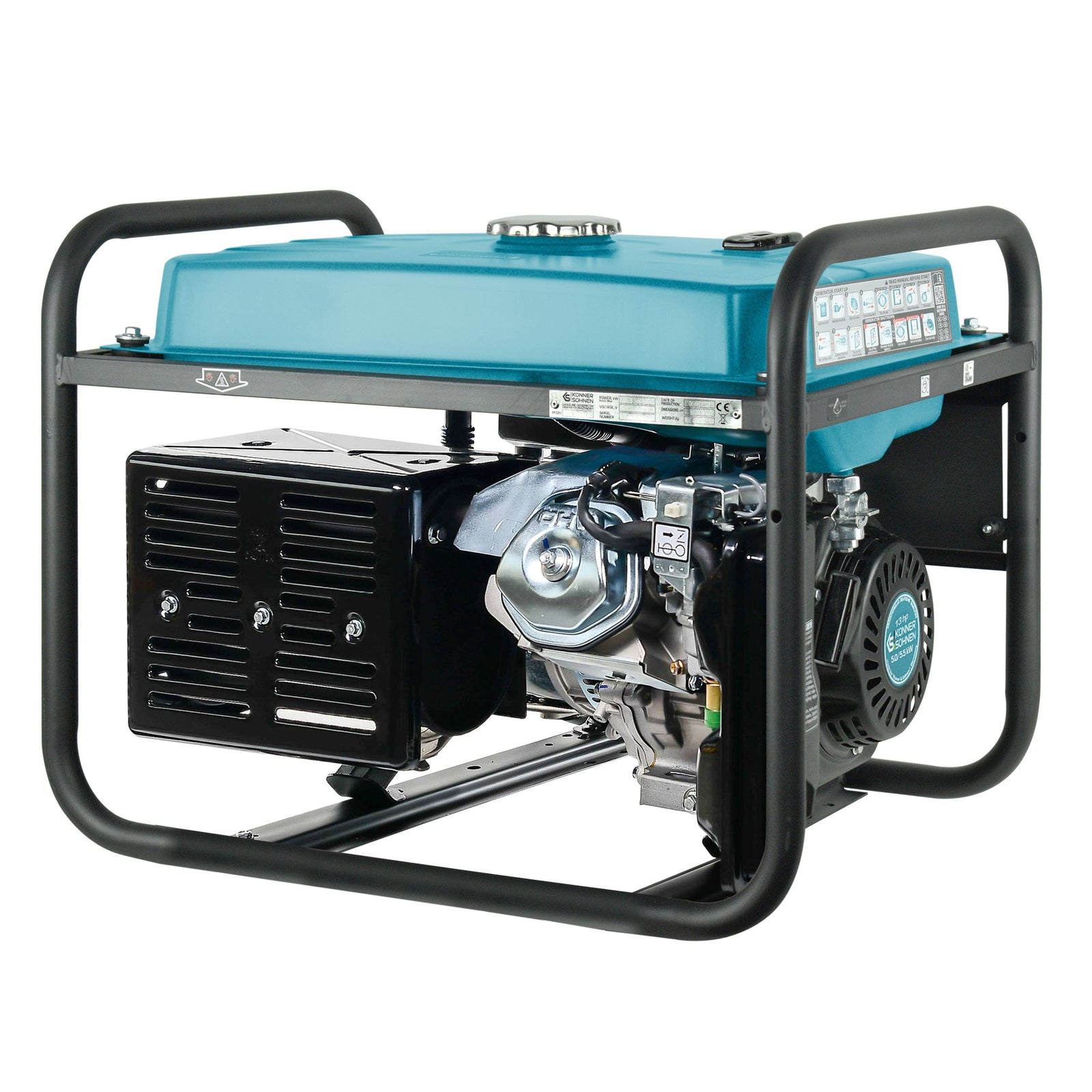

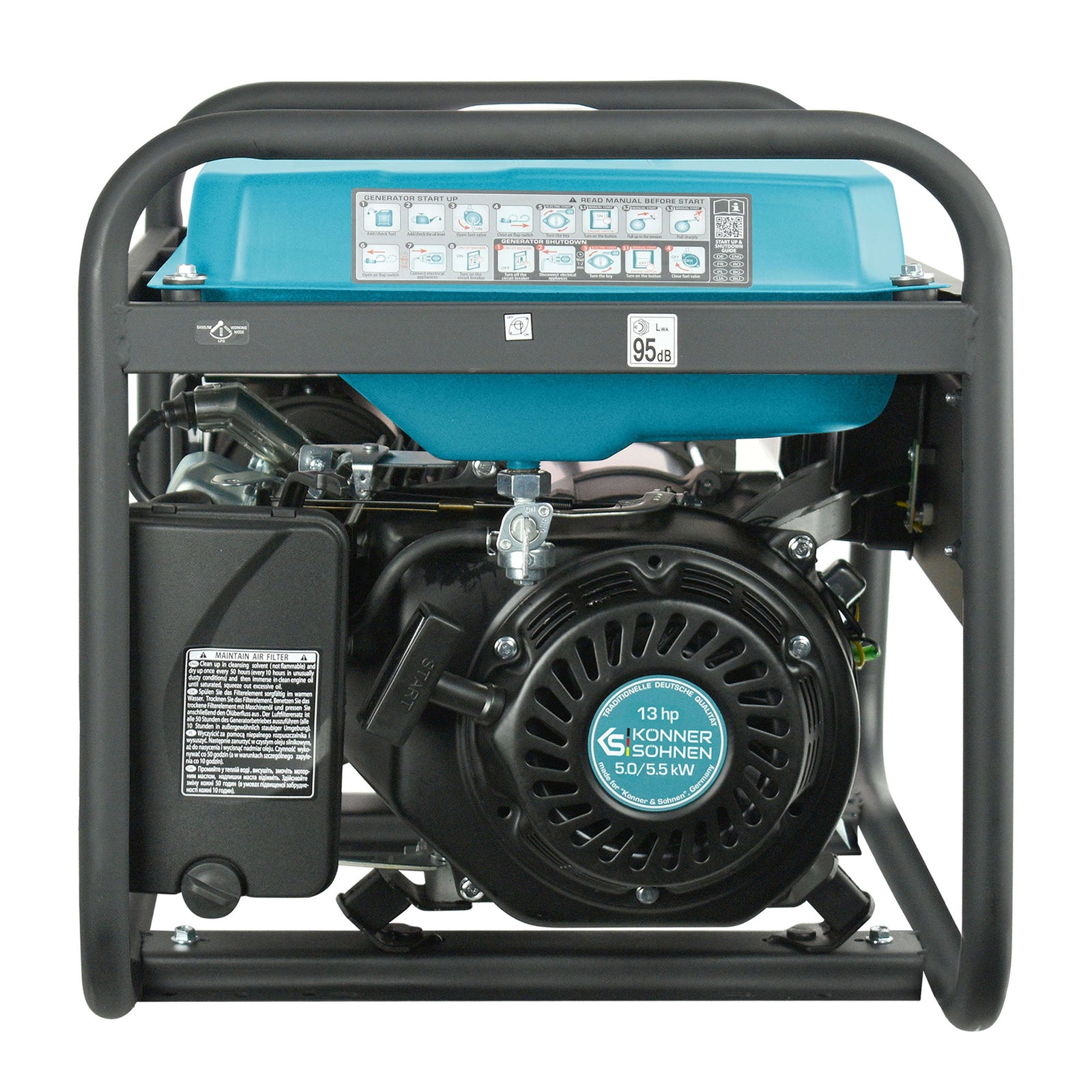

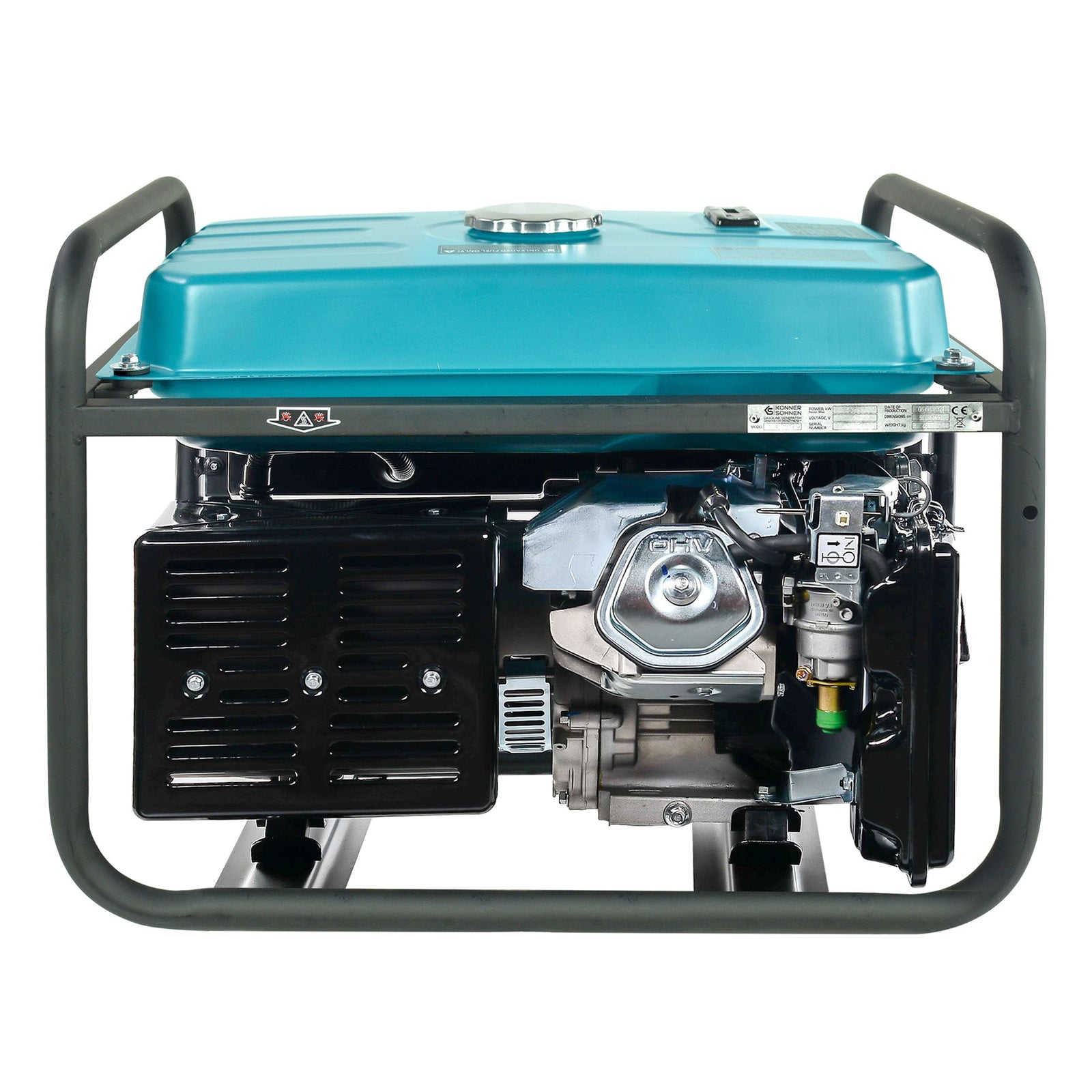

Petrol generator KS 7000E 1/3
£815.00

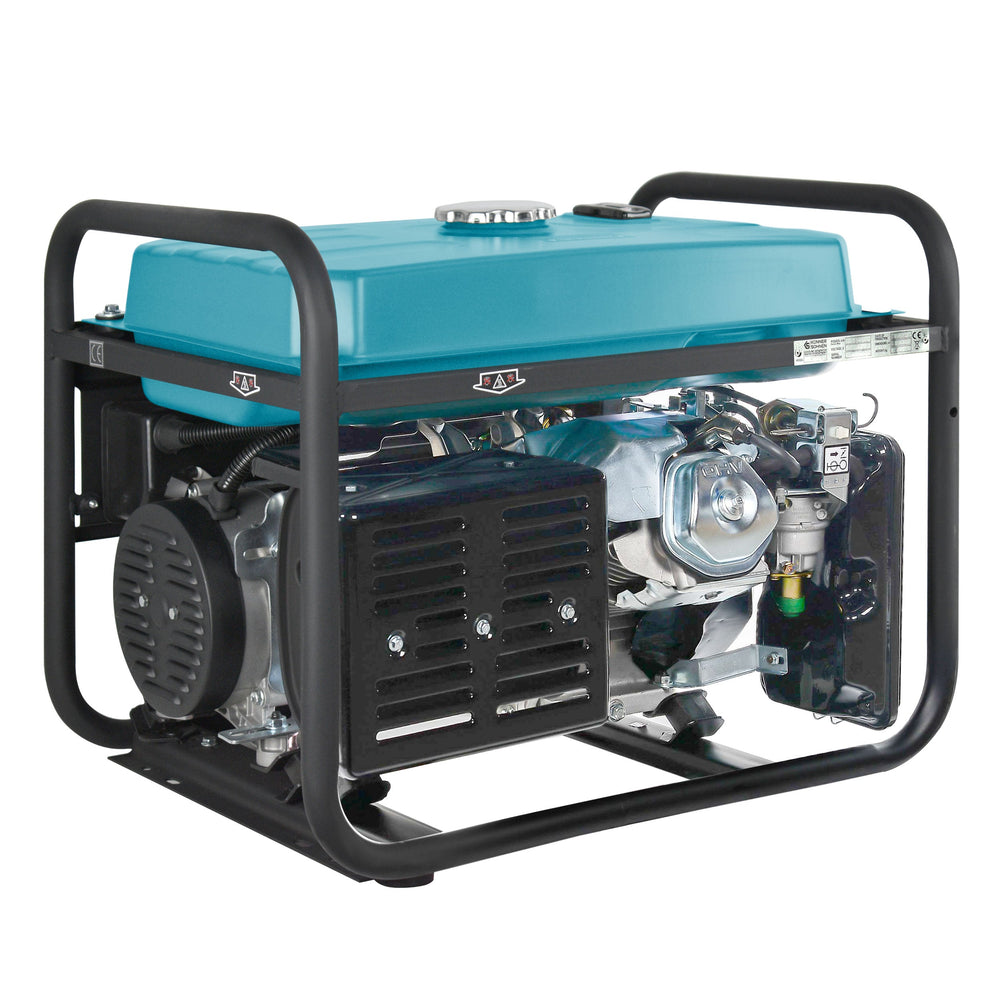

Petrol generator KS 7000E 1/3
£815.00
Petrol generator KS 7000E 1/3
Unavailable
£815.00
Specification
| Voltage, V: | 230/400 |
| Max/Nominal power (230V), kW: | 5.5/5.0 |
| Max/Nominal power (400V), kW: | 5.5/5.0 |
| Engine start: | Manual/electric |
| Outlets: | 1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A |
Specification
| Voltage, V | 230/400 |
| Max/Nominal power (230V), kW | 5.5/5.0 |
| Max/Nominal power (400V), kW | 5.5/5.0 |
| Power factor, cosφ | 1 (230V)/0.8 (400V) |
| Frequency, Hz | 50** |
| Current (max.) 230/400 V, A | 23.91/9.93 |
| Outlets | 1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A |
| Fuel tank volume, l | 25 |
| Avg. working time (power 50%), h*** | 17 |
| LED display | Voltage in Volt, Frequency, Working hours |
| Noise level Lpa (7m)/Lwa, dB | 70/95 |
| Power output DC, V/А | 12/8.3 |
| Engine model | KS 390 |
| Engine type | Petrol powered one-cylinder, four-stroke air-cooled |
| Engine power, hp/kW | 13.0/9.56 |
| Fuel type | Petrol |
| Crank case volume, l | 1.1 |
| Engine cylinder volume, cm3 | 389 |
| Power output controller | Intelligent voltage stabilization system AVR |
| Engine start | Manual/electric |
| Alternator winding | Copper |
| Protection class | IP23M |
| Net dimensions (LxWxH), mm | 680×545×550 |
| Gross dimensions (LxWxH), mm | 700×545×590 |
| Net weight, kg | 81 |
| Gross weight, kg | 83.0 |
| SKU | KS 7000E-1/3 |
| Barcode | 4260405362264 |
Benefits
Features
01
Vts system
02
Könner & söhnen engines
03
Individual serial numbers on engines
04
Convenient ergonomic control panel
05
Equipment
06
Synchronous alternator
07
Easy start system
08
Alternator with 100% copper winding
09
Steel tank
10
Dampers to lower vibration
11
Optional KS 7 KIT

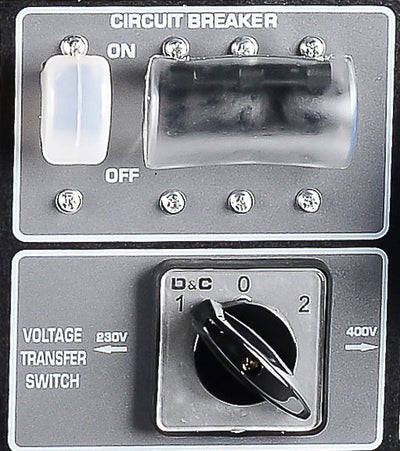

Vts system
The unique innovative VTS (Voltage Transfer Switch) phase switching system with equal power for single-phase (230V) and three-phase (400V) consumers. Each mode has its own circuit breaker.
Könner & söhnen engines
Specially for the Könner & Söhnen trademark German engineers have created K&S series engines, that have passed multi-hour and multi-level tests, that’s why they are so reliable.
Individual serial numbers on engines
Könner & Söhnen engines meet all world and European standards of quality, including the latest EURO 5 emission standards. This is proved by European certificates of quality. Each engine and each generator have their own individual serial number, which allows us to control the quality of production and service.

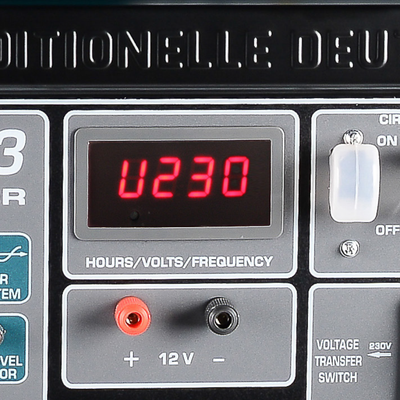

Convenient ergonomic control panel
Сonvenient and ergonomic panel of generator allows you to control the entire unit easily and does not require additional skills. The modern intelligent LED display will always indicate the number of hours worked, frequency and voltage output. The information on the display helps to control the device load and timely maintenance the generator, extending the life of the operation.

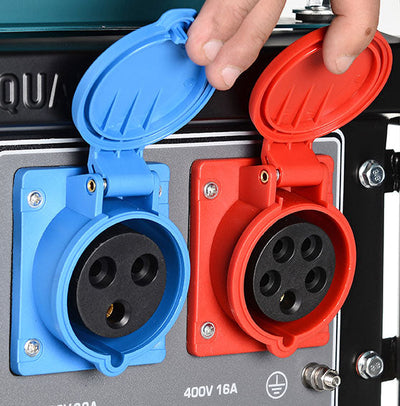

Equipment
The generator panel is equipped with ergonomic connectors for connecting single- and threephase consumers. High-output sockets are made of high-quality heat-resistant plastic.

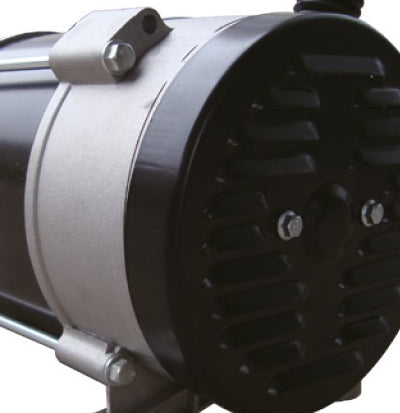

Synchronous alternator
The synchronous alternator with integrated intelligent AVR system is specially designed for singleand three-phase operation without loss of power. High workmanship and copper winding can withstand prolonged ultimate loads.

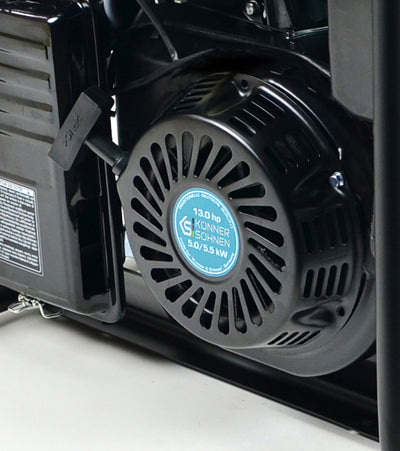

Easy start system
Easy start system system allows you to start the engine quickly and to do this without much effort. For ease of use, generators of this type have two types of startup - manual and electric. More powerful models are additionally equipped with an electric start system.
Alternator with 100% copper winding
TM Könner & Söhnen generators are equipped with a high-end synchronous alternator with 100% copper winding. It is only the copper winding that can withstand maximum loads without any damage to ensure long-term reliable operation of the generator set.
Steel tank
“Könner & Söhnen” generators are equipped with an enlarged steel fuel tank, which extends the generator’s operating time without refueling. The fuel level indicator is located on the tank for ease of use.
Dampers to lower vibration
All models of the Könner & Söhnen generators are equipped with rubber feet to reduce vibrations. Thanks to the rubber damper, the working generator will not damage the floor covering, and the frame coating will not be scratched.
Optional KS 7 KIT
The transport kit KS 7 KIT includes 2 wheels, 2 support legs, a mounting kit and 2 handles.
Specification
Petrol generator KS 7000E 1/3
| Voltage, V | 230/400 |
| Max/Nominal power (230V), kW | 5.5/5.0 |
| Max/Nominal power (400V), kW | 5.5/5.0 |
| Power factor, cosφ | 1 (230V)/0.8 (400V) |
| Frequency, Hz | 50** |
| Current (max.) 230/400 V, A | 23.91/9.93 |
| Outlets | 1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A |
| Fuel tank volume, l | 25 |
| Avg. working time (power 50%), h*** | 17 |
| LED display | Voltage in Volt, Frequency, Working hours |
| Noise level Lpa (7m)/Lwa, dB | 70/95 |
| Power output DC, V/А | 12/8.3 |
| Engine model | KS 390 |
| Engine type | Petrol powered one-cylinder, four-stroke air-cooled |
| Engine power, hp/kW | 13.0/9.56 |
| Fuel type | Petrol |
| Crank case volume, l | 1.1 |
| Engine cylinder volume, cm3 | 389 |
| Power output controller | Intelligent voltage stabilization system AVR |
| Engine start | Manual/electric |
| Alternator winding | Copper |
| Protection class | IP23M |
| Net dimensions (LxWxH), mm | 680×545×550 |
| Gross dimensions (LxWxH), mm | 700×545×590 |
| Net weight, kg | 81 |
| Gross weight, kg | 83.0 |
| SKU | KS 7000E-1/3 |
| Barcode | 4260405362264 |
