Petrol generator KS 10000E ATS
£899.00
£1,099.00

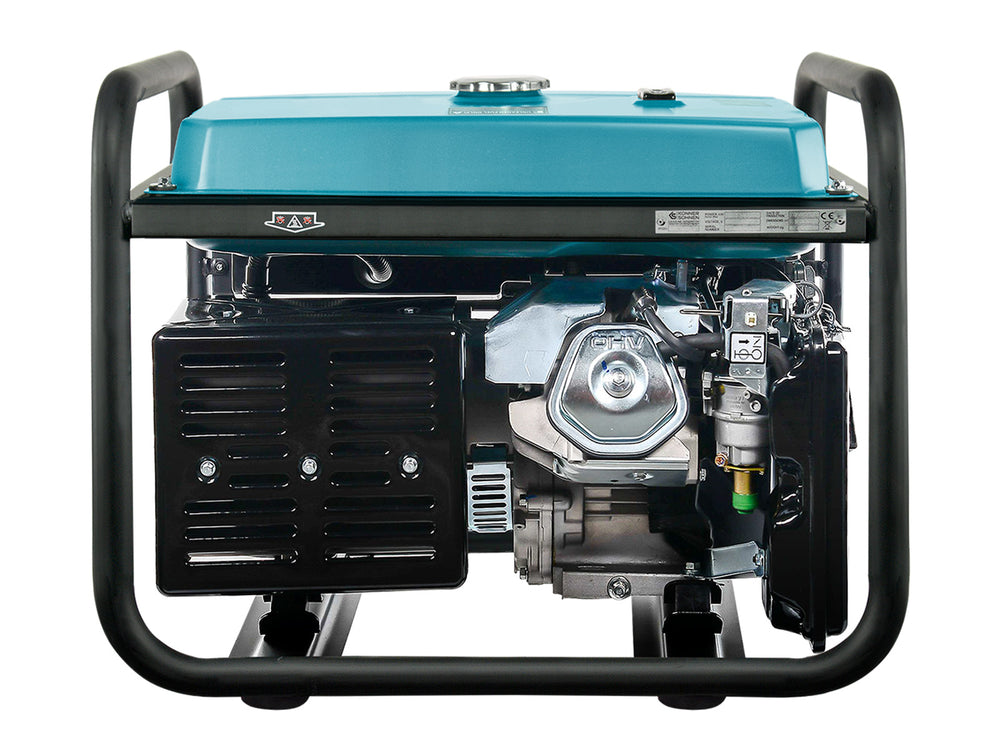

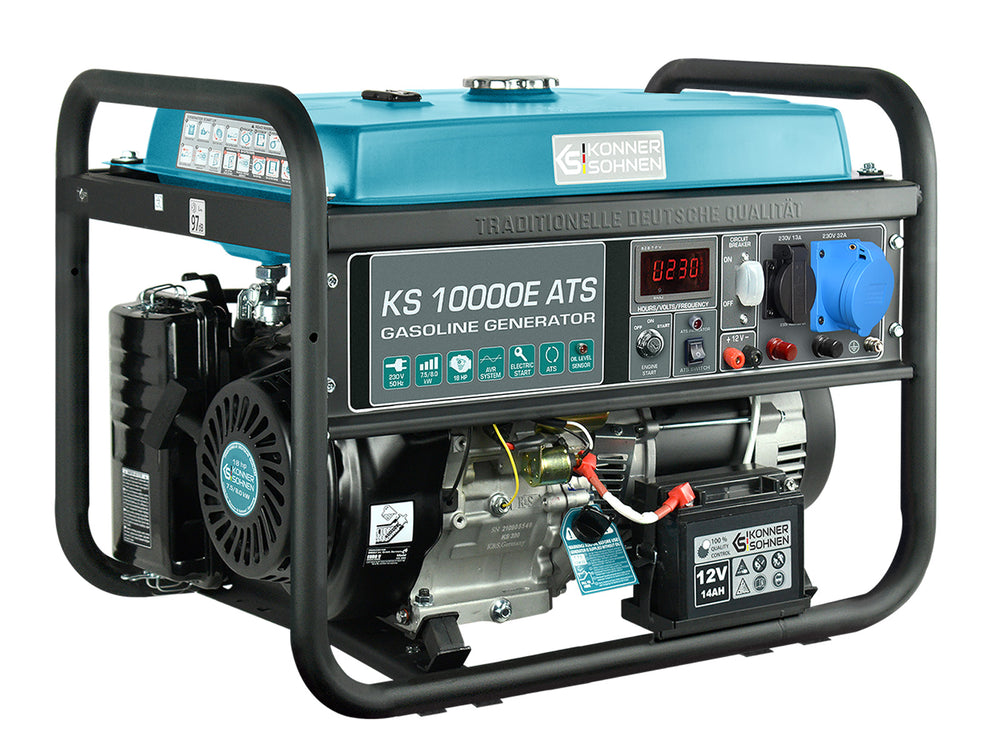

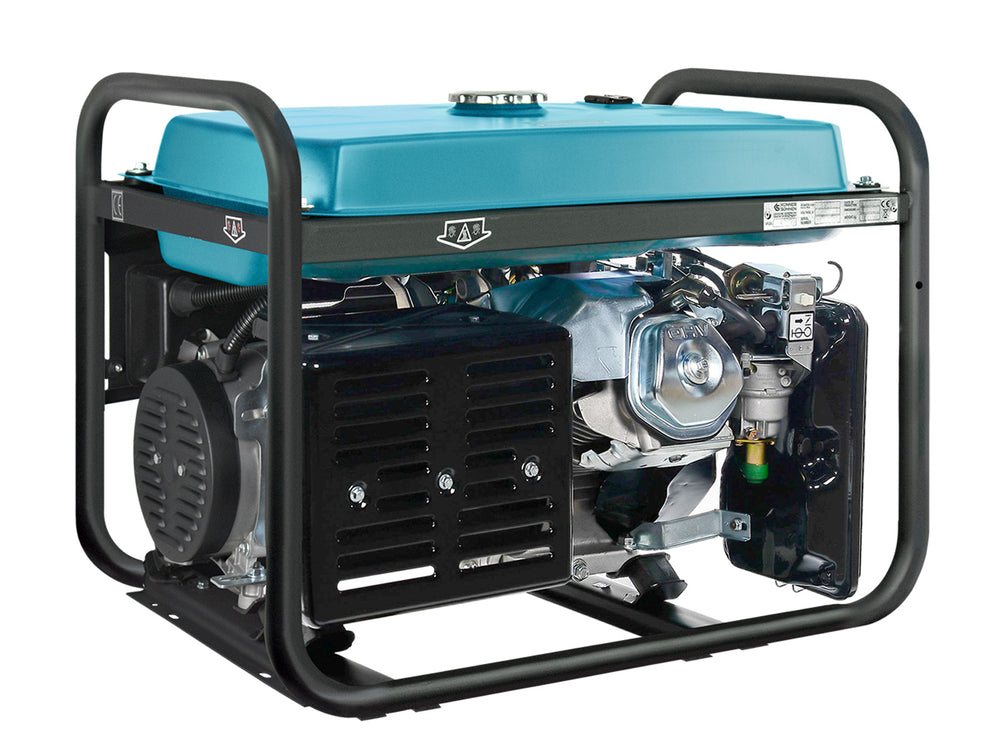

Petrol generator KS 10000E ATS
£899.00
£1,099.00

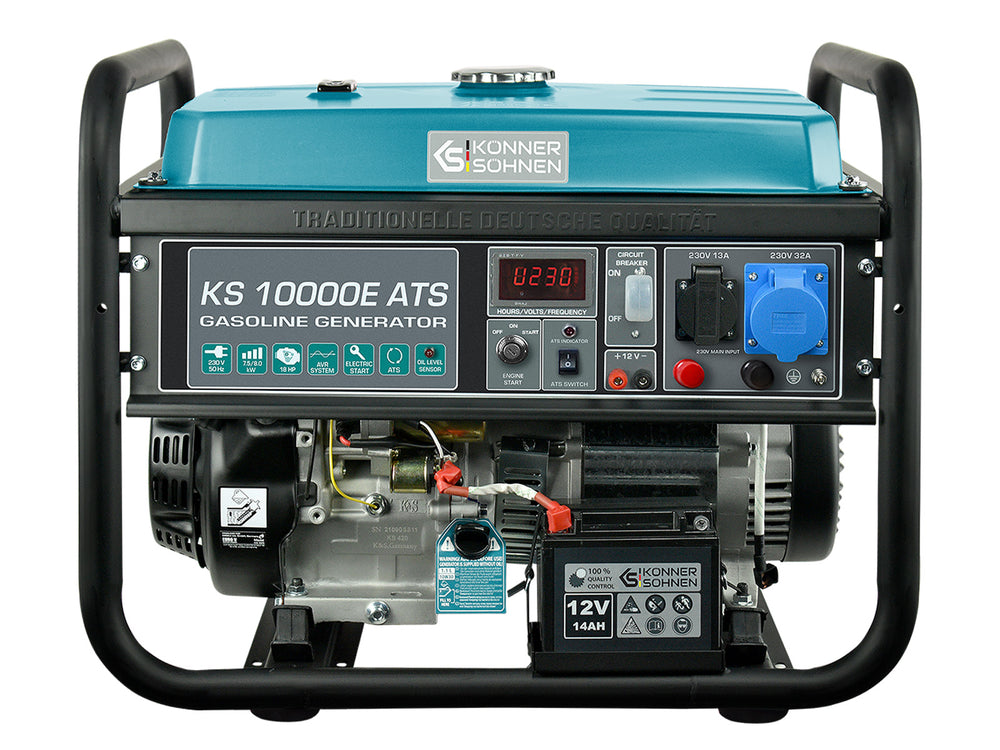

Petrol generator KS 10000E ATS
Available
£899.00£1,099.00
Specification
| Voltage, V: | 230 |
| Max power, kW: | 8.0 |
| Nominal power, kW: | 7.5 |
| Engine start: | Manual/electric/auto |
| Outlets: | 1 x 13 A 230 V, 1 x CEE 230 V 32 A |
Specification
| Voltage, V | 230 |
| Max power, kW | 8.0 |
| Nominal power, kW | 7.5 |
| Power factor, cosφ | 1 |
| Frequency, Hz | 50** |
| Current (max), A | 34.78 |
| Outlets | 1 x 13 A 230 V, 1 x CEE 230 V 32 A |
| Fuel tank volume, l | 25 |
| Avg. working time (power 50%), h*** | 15 |
| LED display | Voltage, frequency, working hours |
| Noise level Lpa (7m)/Lwa, dB | 71/96 |
| Power output DC, V/А | 12/8.3 |
| Engine model | KS 440 |
| Engine type | Petrol powered one-cylinder, four-stroke air-cooled |
| Engine power, hp/kW | 18.0/13.24 |
| Fuel type | Petrol |
| Crank case volume, l | 1.2 |
| Engine cylinder volume, cm3 | 440 |
| Power output controller | Intelligent voltage stabilization system AVR |
| Engine start | Manual/electric/auto |
| Alternator winding | Copper |
| Protection class | IP23M |
| Net dimensions (LxWxH), mm | 680x545x550 |
| Gross dimensions (LxWxH), mm | 700x545x590 |
| Net weight, kg | 87.8 |
| Gross weight, kg | 90.2 |
| SKU | KS 10000E ATS |
| Barcode | 4260405361175 |
Benefits
Features
01
Könner & söhnen engines
02
Individual serial numbers on engines
03
Built-in ats system
04
Convenient ergonomic control panel with electic start
05
230v or 400v
06
Alternator with 100% copper winding
07
Switching contactors
08
Easy start system
09
Steel tank
10
Reinforced steel frame
11
Dampers to lower vibration
Könner & söhnen engines
Specially for the Könner & Söhnen trademark German engineers have created K&S series engines, that have passed multi-hour and multi-level tests, that’s why they are so reliable. High-performance K&S engines comply with the latest EURO 5 emission standards.
Individual serial numbers on engines
Könner & Söhnen engines meet all world and European standards of quality, including the harmful emissions level and noise level. This is proved by European certificates of quality. Each engine and each generator have their own individual serial number, which allows us to control the quality of production and service.
Könner & Söhnen motors have easy start and low vibration. The KS 10000 range of gasoline generators is equipped with a reliable 1-cylinder 18 hp engine.

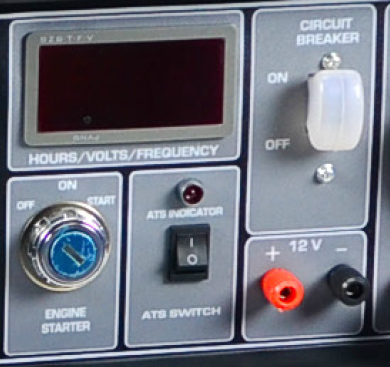

Built-in ats system
The generator control panel with the ATS function (automatic transfer switch) is equipped with power terminals, ATS switch and ATS operation indicator.

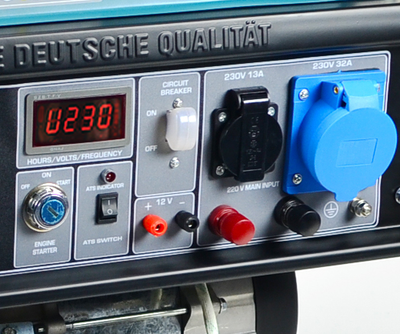

Convenient ergonomic control panel with electic start
Сonvenient and ergonomic panel of generator allows you to control the entire unit easily and does not require additional skills. The modern intelligent LED display will always indicate the number of hours worked, frequency and voltage output. The information on the display helps to control the device load and timely maintenance the generator, extending the life of the operation.

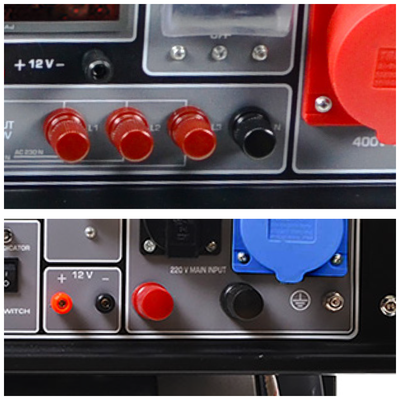

230v or 400v
The presented series includes models for single- and three-phase consumers. The generator control panel with the ATS function has corresponding 230V and 400V mains terminals.
Alternator with 100% copper winding
TM Könner & Söhnen generators are equipped with a high-end synchronous alternator with 100% copper winding. It is only the copper winding that can withstand maximum loads without any damage to ensure long-term reliable operation of the generator set.

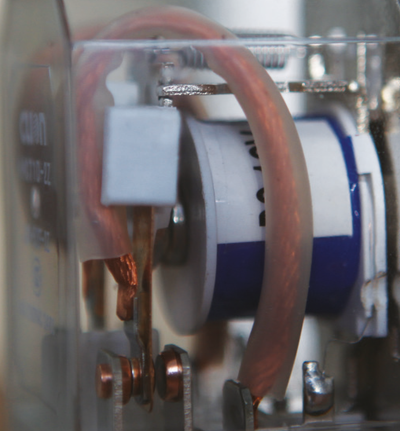

Switching contactors
Reliable 100% copper switching contactors have an increased capacity of 40 A, which ensures long-term failsafe performance of the ATS system.
Easy start system
Easy start system system allows you to start the engine quickly and to do this without much effort. For ease of use, generators of this type have three types of startup - manual, electric and automatic. More powerful models are additionally equipped with an electric start system.
Steel tank
“Könner & Söhnen” generators are equipped with an enlarged steel fuel tank, which extends the generator’s operating time without refueling. The fuel level indicator is located on the tank for ease of use.

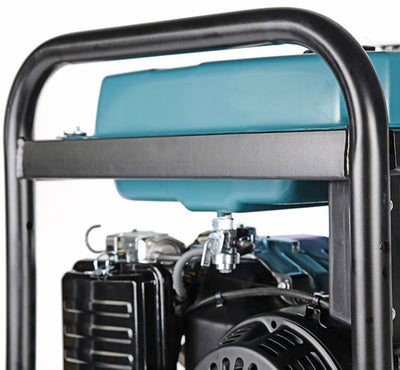

Reinforced steel frame
This model is equipped with a strong steel frame with a diameter of ø 32 mm, which serves to protect the generator from various kinds of damage and provides convenient transportation.
Dampers to lower vibration
All models of the Könner & Söhnen generators are equipped with rubber feet to reduce vibrations. Thanks to the rubber damper, the working generator will not damage the floor covering, and the frame coating will not be scratched.
Specification
Petrol generator KS 10000E ATS
| Voltage, V | 230 |
| Max power, kW | 8.0 |
| Nominal power, kW | 7.5 |
| Power factor, cosφ | 1 |
| Frequency, Hz | 50** |
| Current (max), A | 34.78 |
| Outlets | 1 x 13 A 230 V, 1 x CEE 230 V 32 A |
| Fuel tank volume, l | 25 |
| Avg. working time (power 50%), h*** | 15 |
| LED display | Voltage, frequency, working hours |
| Noise level Lpa (7m)/Lwa, dB | 71/96 |
| Power output DC, V/А | 12/8.3 |
| Engine model | KS 440 |
| Engine type | Petrol powered one-cylinder, four-stroke air-cooled |
| Engine power, hp/kW | 18.0/13.24 |
| Fuel type | Petrol |
| Crank case volume, l | 1.2 |
| Engine cylinder volume, cm3 | 440 |
| Power output controller | Intelligent voltage stabilization system AVR |
| Engine start | Manual/electric/auto |
| Alternator winding | Copper |
| Protection class | IP23M |
| Net dimensions (LxWxH), mm | 680x545x550 |
| Gross dimensions (LxWxH), mm | 700x545x590 |
| Net weight, kg | 87.8 |
| Gross weight, kg | 90.2 |
| SKU | KS 10000E ATS |
| Barcode | 4260405361175 |
Instructions
Petrol Generators K&S 2023
Instruction |
Generators
Könner & Söhnen Energy 2025
Catalog |
K&S Energy
Video Reviews
Generators
Starting a petrol generator with electric start
Generators
Starting a petrol generator with manual starter
Generators
Commissioning of a petrol generator "Könner & Söhnen"
Customer Reviews
Based on 8 reviews
63%
(5)
38%
(3)
0%
(0)
0%
(0)
0%
(0)
F
Good all-rounder. Runs our tools and external lighting without issues. ATS module is very convenient. Delivery was quick.
N
We’ve used it during some scheduled works on our mains supply. ATS functionality was perfect. Took a while to understand the panel but support was helpful.
D
We had this installed with an automatic transfer switch for extra peace of mind. It's been flawless and kicks in smoothly when needed. Great investment!
A
We use it at our off-grid workshop and the ATS means we never worry about switching over manually. Very reliable machine.
G
Runs powerful equipment in our workshop with no issue. The ATS feature makes it really hands-free. A bit bulky but manageable with the wheel kit.
