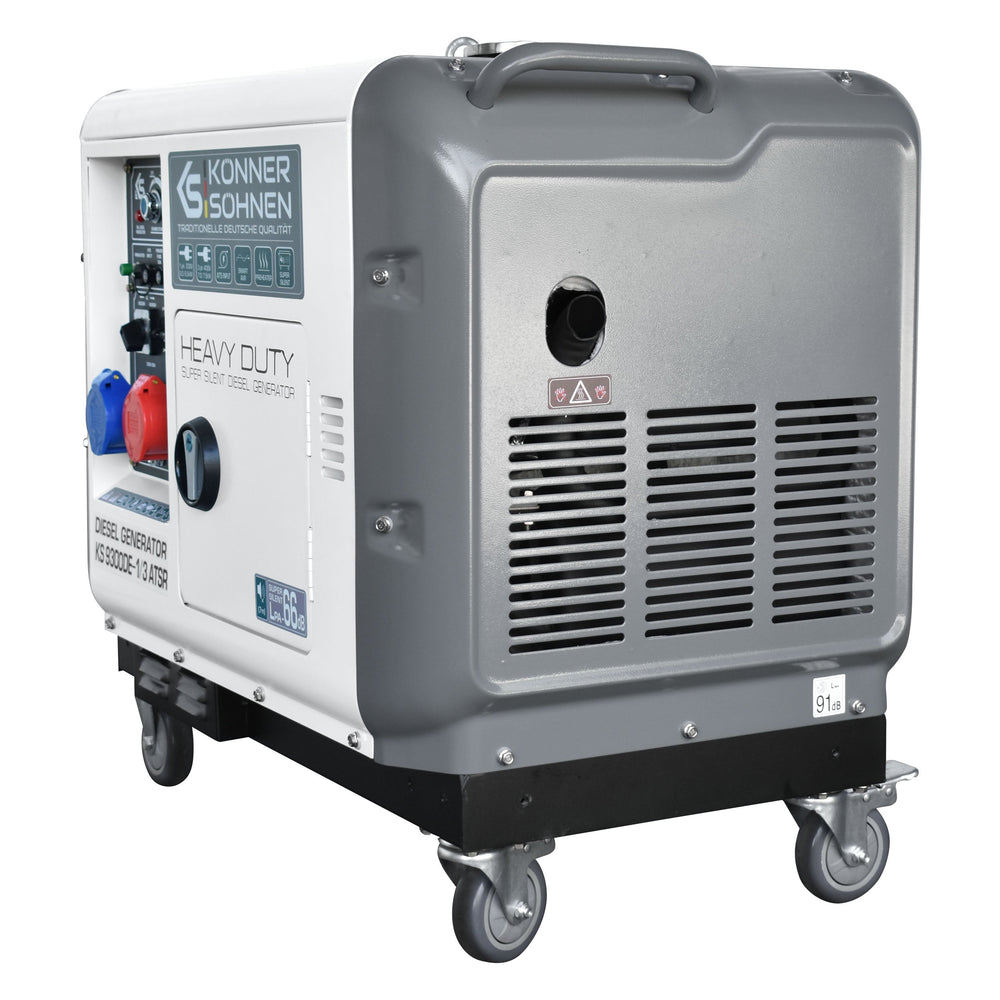

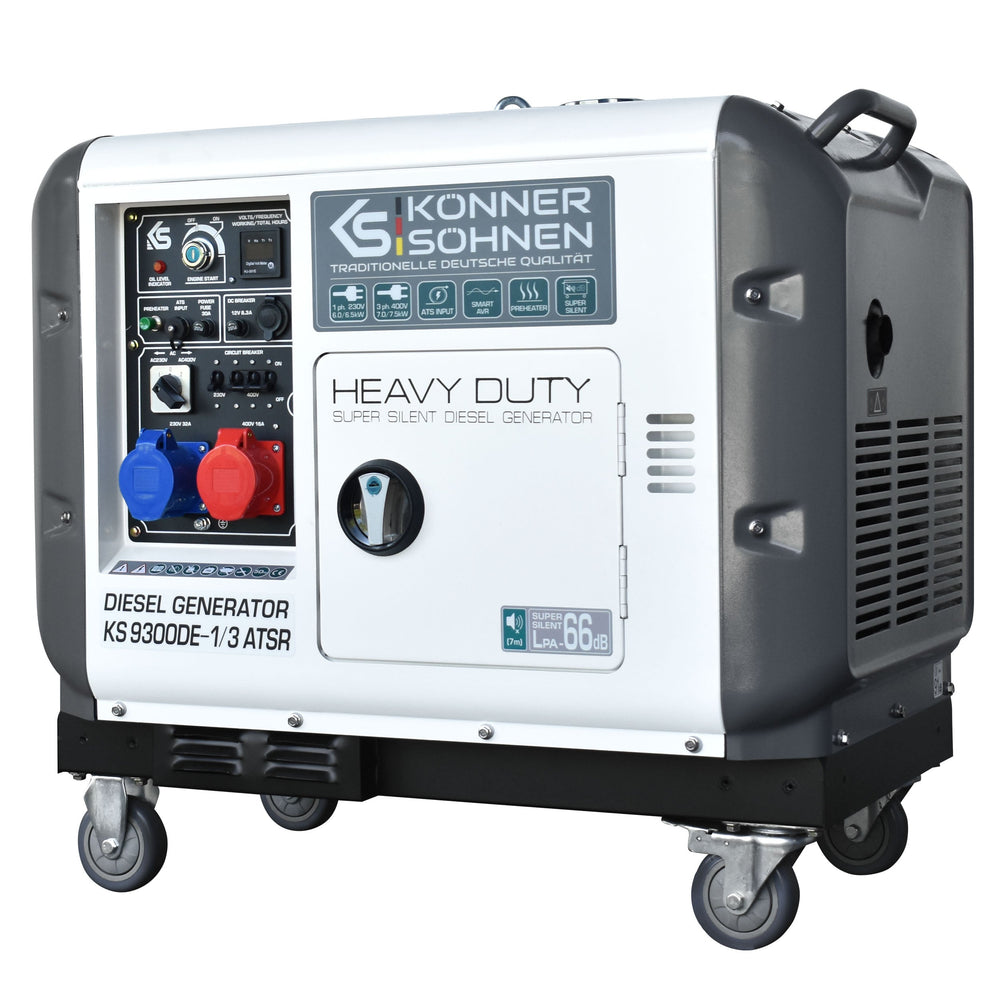

Diesel generator KS 9300DE-1/3 ATSR (EURO 5)

Diesel generator KS 9300DE-1/3 ATSR (EURO 5)

Name: Diesel generator KS 9300DE-1/3 ATSR (EURO 5)
Brand: Könner & Söhnen
SKU: 4260405365210
Price: 1599.0 GBP
Availability: InStock

Available

£1,599.00£1,999.00

Order until 17:00 tomorrow and it will be delivered on Nov 6, 2025

Specification

Frequency, Hz:	50**
Max/Nominal power (230V), kW:	6.5/6.0
Max/Nominal power (400V), kW:	7.5/7.0
Fuel tank volume, l:	15
Avg. working time (power 50%), h***:	8.3

Benefits

Guaranteed quality: you can be confident that you are purchasing a generator of the highest quality that will last for many years
Thanks to the pre-start heating, the generator can operate reliably in winter
The information on the display helps easily monitor the quality of the voltage output by the device
With its simple and intuitive control panel, you can easily operate the generator without specialized knowledge or skills
With the ability to connect an AVR, you will get uninterrupted power supply: the generator will start automatically

Features

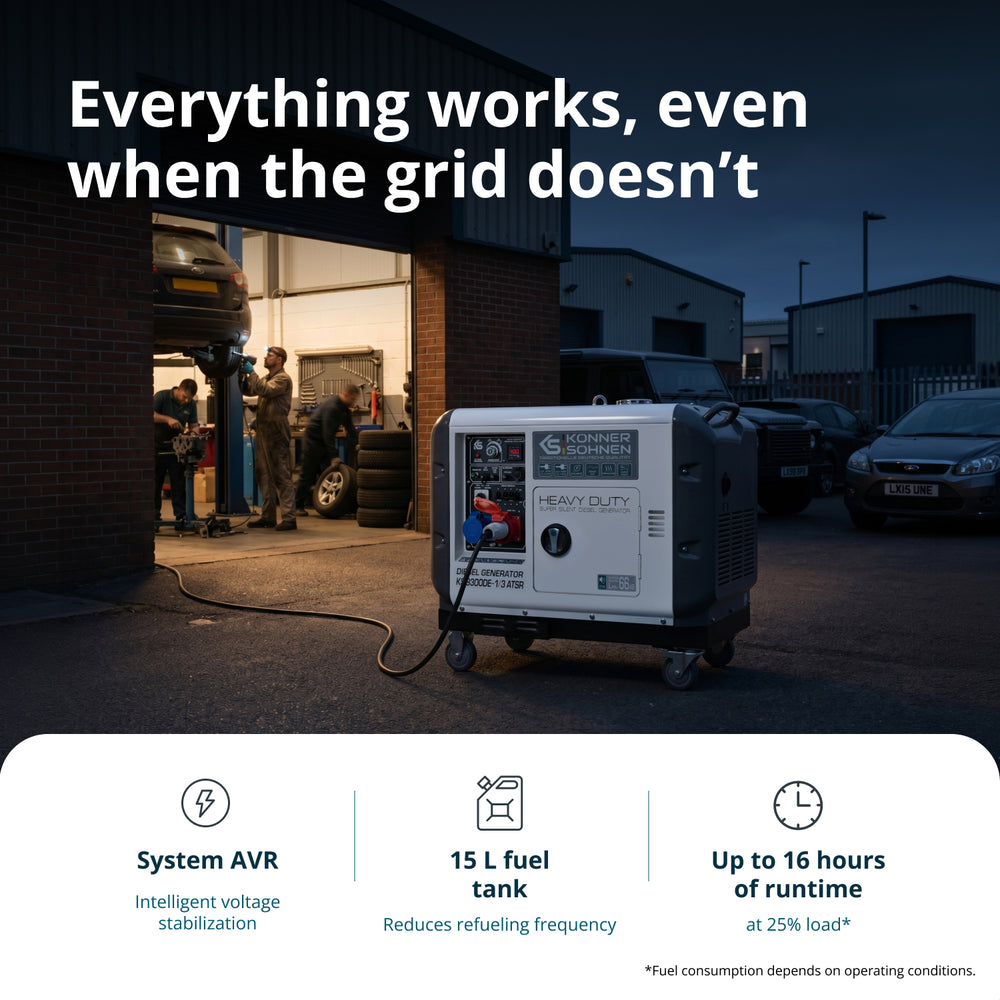

HEAVY DUTY series KS 9300DE-1/3 ATSR diesel generator of the German trademark “Könner & Söhnen” is an excellent choice as a backup power source. With an anti-vandal enclosure, this model is ideal for small stores, cafés, and restaurants and is especially popular among private home owners, where an emergency power source is a must due to frequent power outages.

01 Vts system

02 Automatic transfer switch

03 Branded engines

04 the user-friendly ergonomic control panel

05 Transport kit

06 Soundproof anti-vandal enclosure

07 Pre-heating

08 Increased engine resource

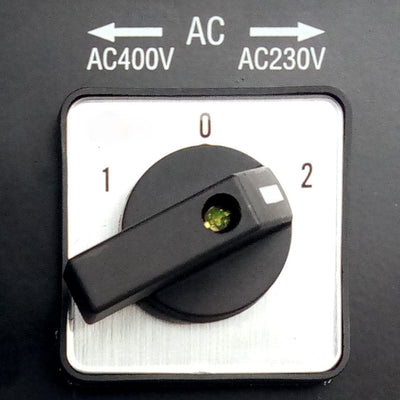

Vts system

Unique VTS phase switching system allows using a single generator both in single-phase (230 V) and three-phase mode (400 V) with almost no power loss.

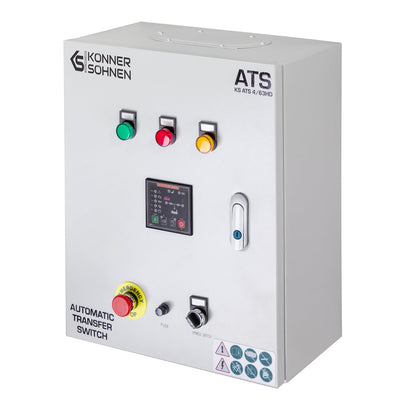

Automatic transfer switch

6-pin connector for an external ATS unit ensures automatic generator start-up and shutdown and maintains the charge of the generator battery in standby mode.

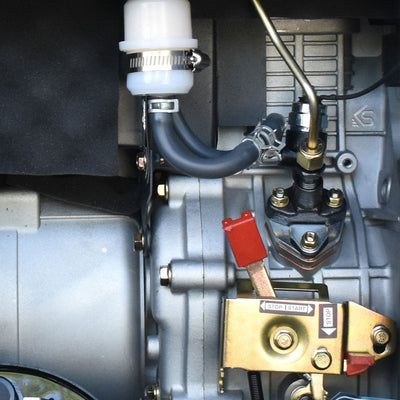

Branded engines

Engines for diesel generators, as well as for gasoline, are manufactured under license DIMAX Int. GmbH and are marked with their own brand with the logo. In all models, the power reserve of the engine in relation to the alternator allows you to issue the declared voltage and maintain its stability in the full range of voltages. All engines are tested for long continuous operation, and then disassembled and examined for faults. Each engine and each generator has an individual serial number, which allows us to control the quality of production and service. The engines meet all European quality standards, including the modern EURO 5 environmental standard.

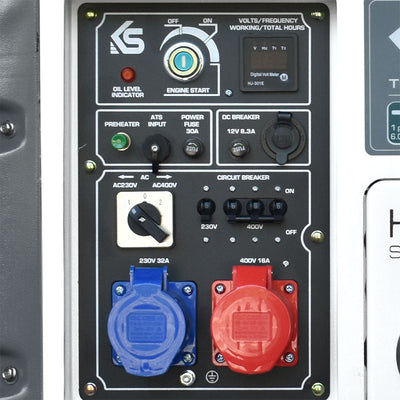

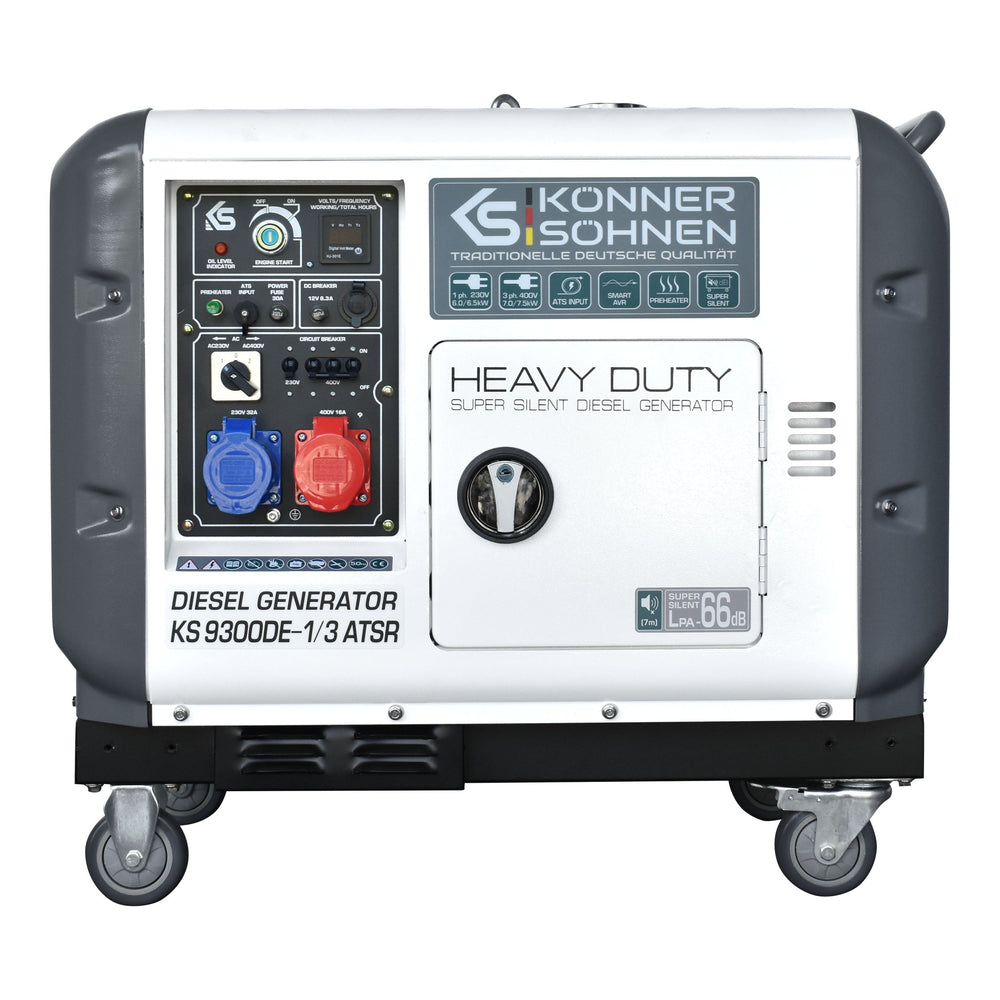

the user-friendly ergonomic control panel

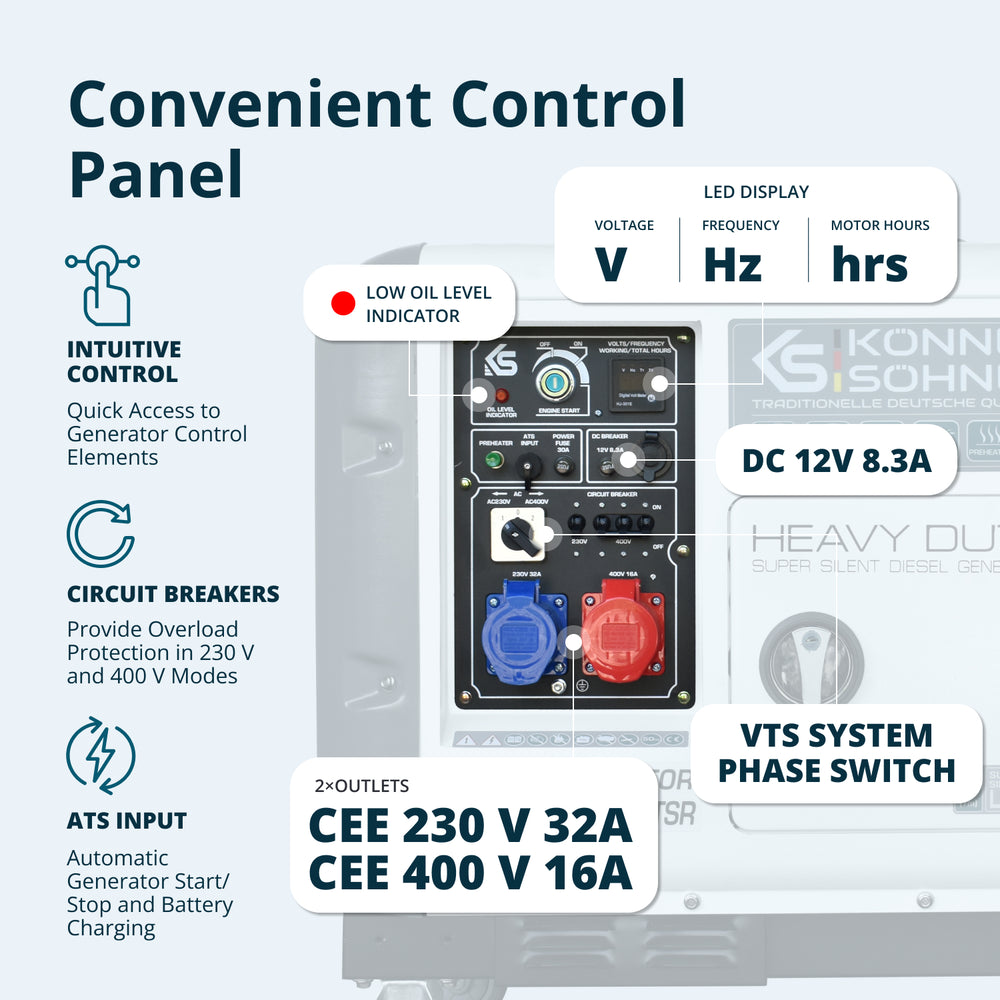

Ergonomic control panel allows easy operation of the generator thanks to the convenient location of the controls and connections: modern LED display (voltage, frequency, hour meter), automatic overload and short circuit protection, low oil level indicator, sockets, grounding bolt, terminals, etc.

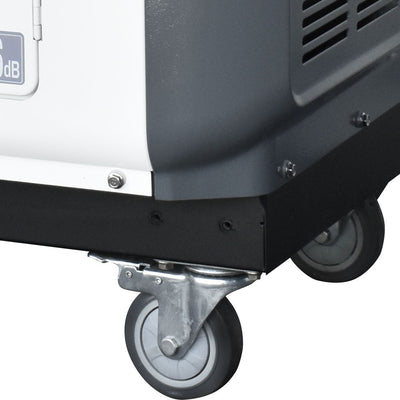

Transport kit

The generator casing is equipped with a transport kit consisting of 4 wheels and 2 handles for easy handling.

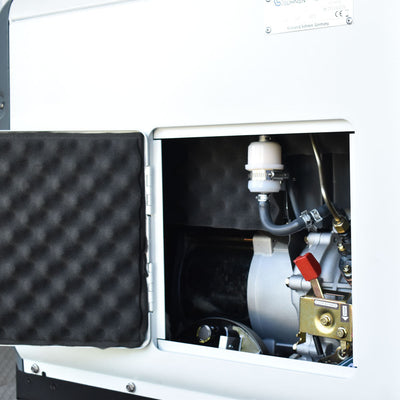

Soundproof anti-vandal enclosure

Anti-vandal enclosure provides a more efficient heat distribution inside the generator, which extends its service life.

Pre-heating

The pre-start heating function enables quick and smooth generator startup even at low temperatures. This is particularly relevant in winter when diesel fuel can thicken, making engine starts more difficult.

Increased engine resource

Könner & Söhnen® diesel generators of the "HEAVY DUTY" series have an increased motor resource - so they have a longer service life, can work for more hours without a break. The engine resource exceeds 3000 working hours, this is confirmed by multi-hour, multi-level tests and warranty. To show high performance, machines should be maintained properly.

Specification

Diesel generator KS 9300DE-1/3 ATSR (EURO 5)

Voltage, V	230/400
Max/Nominal power (230V), kW	6.5/6.0
Max/Nominal power (400V), kW	7.5/7.0
Power factor, cosφ	1 (230V)/0.8 (400V)
Frequency, Hz	50**
Current (max.) 230/400 V, A	28.26/13.54
Outlets	1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A
Avg. working time (power 50%), h***	8.3
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	66/91
Power output DC, V/А	12/8.3
Engine model	KS 520HD-V
Engine power, hp/kW	18.0/13.24
Preheater	+
Fuel tank volume, l	15
Crank case volume, l	1.65
Engine cylinder volume, cm3	498
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Electric
Output for ATS	+
Protection class	IP23M

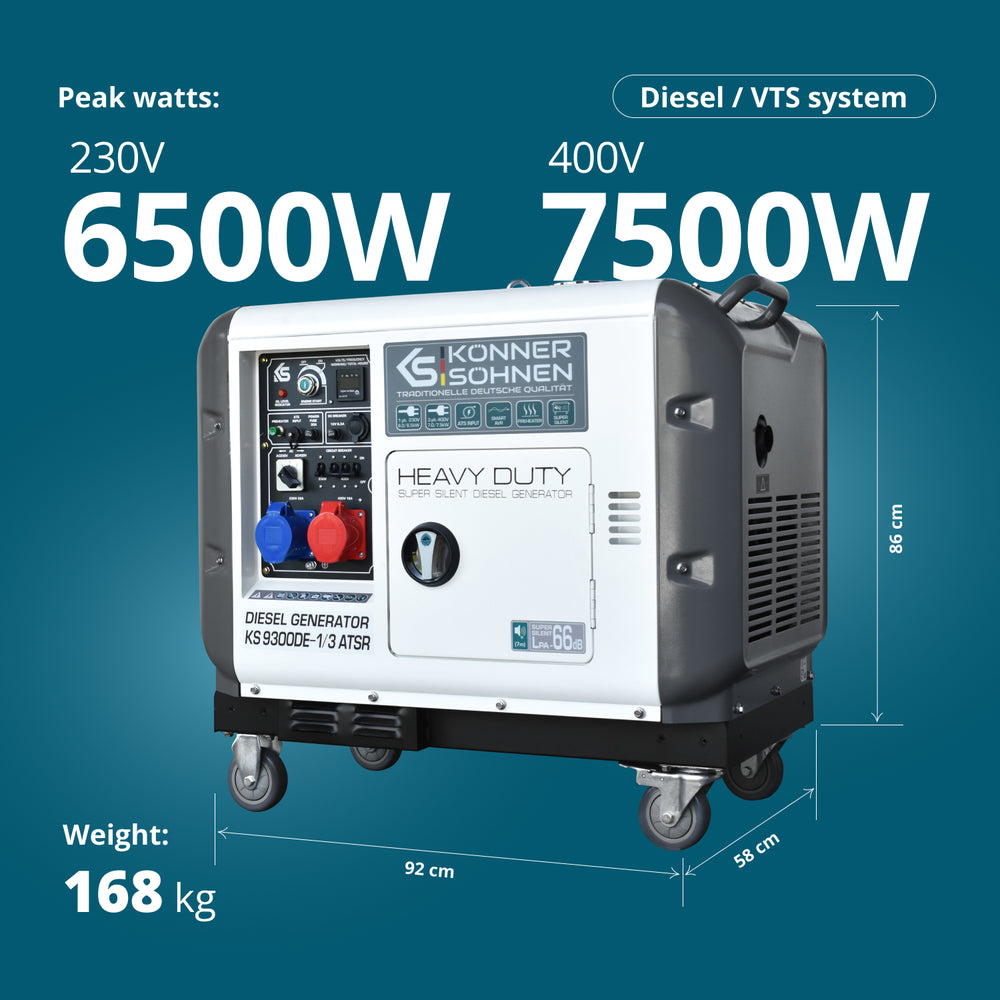

Net dimensions (LxWxH), mm	920 x 580 x 860
Gross dimensions (LxWxH), mm	940 х 600 х 880
Net weight, kg	168
Gross weight, kg	180.0
SKU	KS 9300DE-1/3 ATSR
Barcode	4260405365210

**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

***Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.
